Why Need of Naming Server

 Suppose if we are using Ribbon than it needs a configured if any new server comes up

suppose currently only 2 server was there 8001 and 8000  as given below application .properties file only configured with two server now for any new server like 8002 comes up as we didnt configured into the application properties file

currency-exchange-service.ribbon.listOfServers=http://localhost:8000,http://localhost:8001

So for dynamicaly increase and decreasing we need naming server(EurekaNamingServer)

All the instances of All Microservices would register with naming server, that is called service Registration


whenever service want to talk to another service like CurrencyCalculationService wants to talk to the CurrencyExchangeService, what would do, it would talk to the NameServer, and it would ask the NameServer what are the instances of the currencyExchangeService that are currently running? This is called Service Discovery

  1. Service Registration: All Microservice Register with Eureka naming server
  2. Service Discovery: Asking to the Eureka Naming server and ask How many Service running for specific service is known as service Discovery

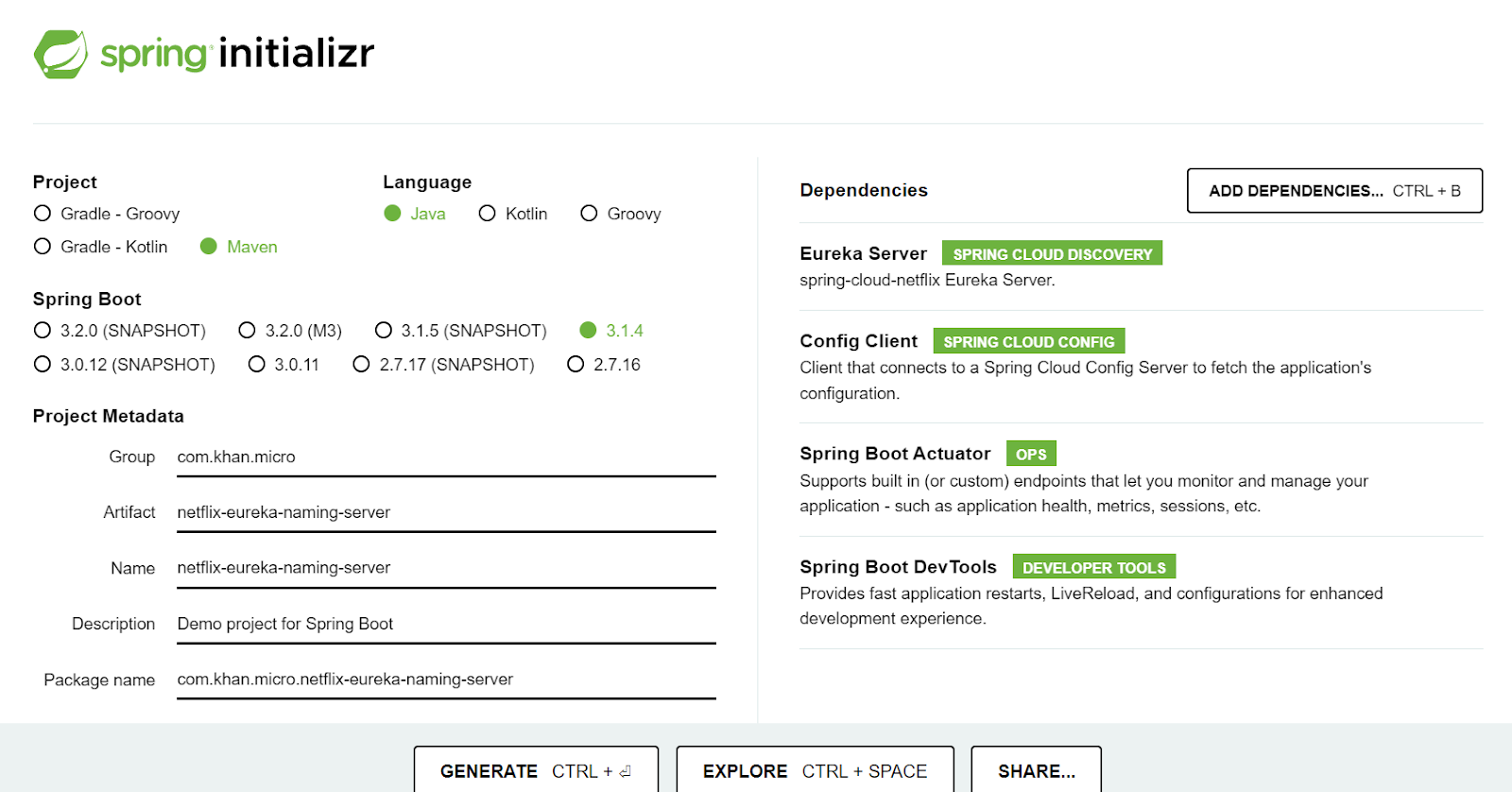

Given Above dependancies is requried for Naming server project to be Create

Step 1:  for resolving Bootstrape Error Add Givne Below Dependancies
<dependency>
    <groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-bootstrap</artifactId>
</dependency>

Step 2: Add Given properties in application.properties file

spring.application.name=netflix-eureka-naming-server

server.port=8761


Step 3: add @EnableEurekaServer in main class for Enabling Eureka Server

@SpringBootApplication

@EnableEurekaServer

public class NetflixEurekaNamingServerApplication {


public static void main(String[] args) {

SpringApplication.run(NetflixEurekaNamingServerApplication.class, args);

}


}



Step 4: by hitting http://localhost:8761/ you can see the eureka server UI which shows Eureka Server up and running




Lets Us Given Below Pom.xml file

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">

<modelVersion>4.0.0</modelVersion>

<parent>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-parent</artifactId>

<version>2.1.9.RELEASE</version>

<relativePath /> <!-- lookup parent from repository -->

</parent>

<groupId>com.khan.microserservices</groupId>

<artifactId>netflix-eureka-naming-server</artifactId>

<version>0.0.1-SNAPSHOT</version>

<name>netflix-eureka-naming-server</name>

<description>netflix eureka naming server</description>

<properties>

<java.version>1.8</java.version>

<spring-cloud.version>Greenwich.SR3</spring-cloud.version>

</properties>

<dependencies>

<dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-actuator</artifactId>

</dependency>

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-config</artifactId>

</dependency>

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>

</dependency>


<dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-devtools</artifactId>

<scope>runtime</scope>

<optional>true</optional>

</dependency>

<dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-test</artifactId>

<scope>test</scope>

</dependency>

<!-- <dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-bootstrap</artifactId>

</dependency>-->

</dependencies>

<dependencyManagement>

<dependencies>

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-dependencies</artifactId>

<version>${spring-cloud.version}</version>

<type>pom</type>

<scope>import</scope>

</dependency>

</dependencies>

</dependencyManagement>


<build>

<plugins>

<plugin>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-maven-plugin</artifactId>

<configuration>

<image>

<builder>paketobuildpacks/builder-jammy-base:latest</builder>

</image>

</configuration>

</plugin>

</plugins>

</build>


</project>
